Overview
The ZL-MB50 main bus (Master) switch was designed to replace clunky, mechanical contactors with something more reliable and efficient.
The ZL-MB50 has no moving parts to wear out or get stuck, and only draws 2 mAmps or less while switching, meaning less wear on the battery and system as well.
Like what you see? Visit our store!
Specifications
| Size: | 4.05"(L) x 2.07"(W) x 1.06"(H) (102.9 x 52.5 x 26.8 mm) |
| Weight: | 2.0oz (55g) |
| Mounting: | Two 0.18" holes, 3.5" apart |
| Connector types: | - One male 0.25" spade, for switching. - Two 1/4"-20 bolts w/nuts, for power and load. |
| Input voltage: | 10-30 V |
| Total Capacity: | 50 Amps |
| Current Draw: | 1.7 mA max |
| Power Consumption: | 24 mW |
Pictures

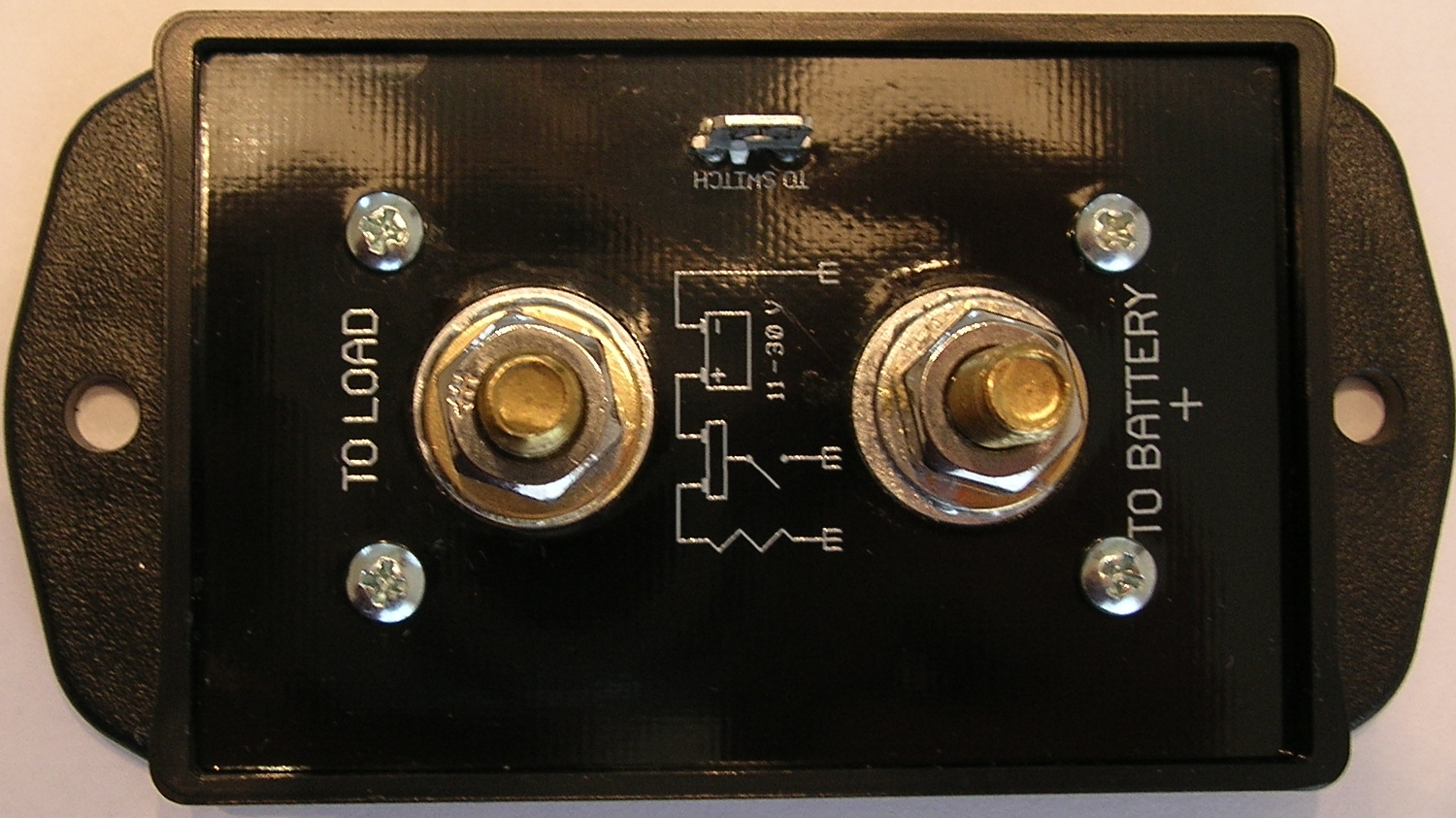

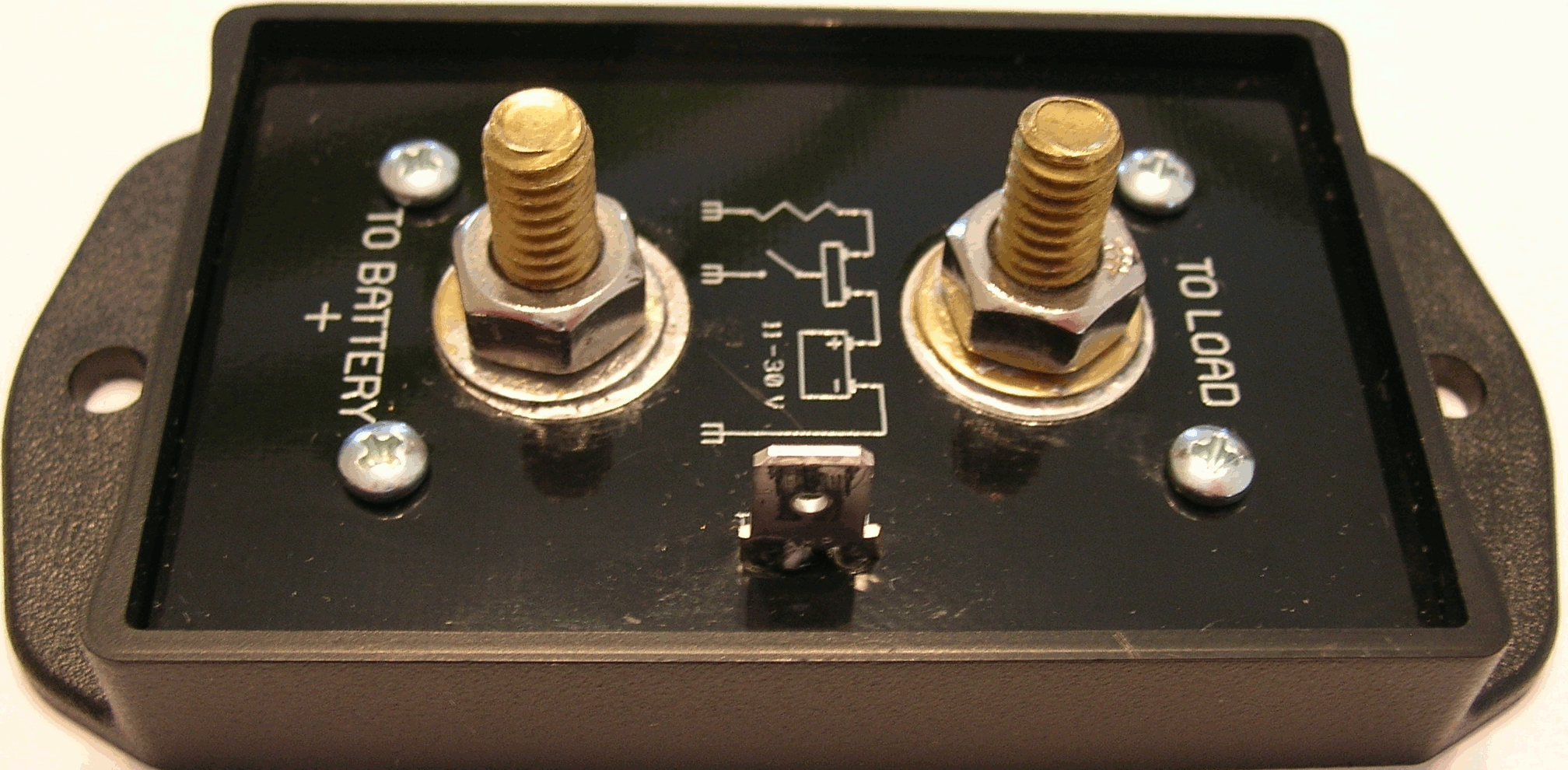

| Product | |
|
|
|
|
| Other | |
|
|
